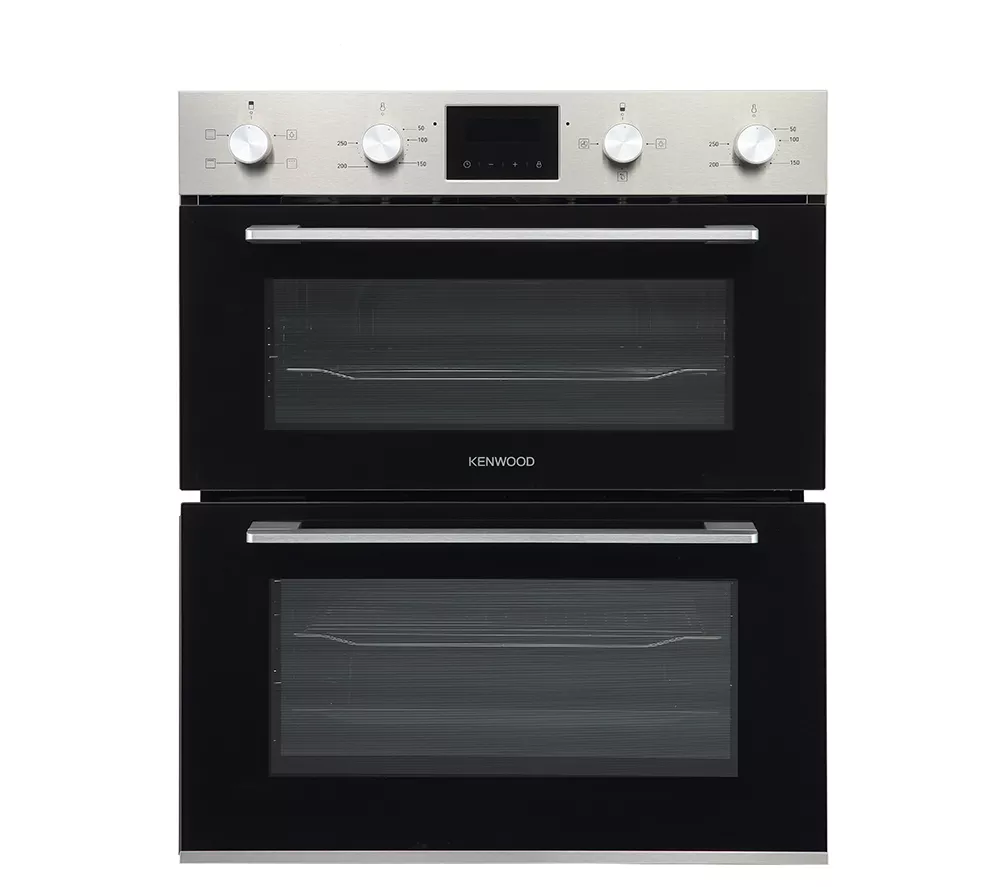

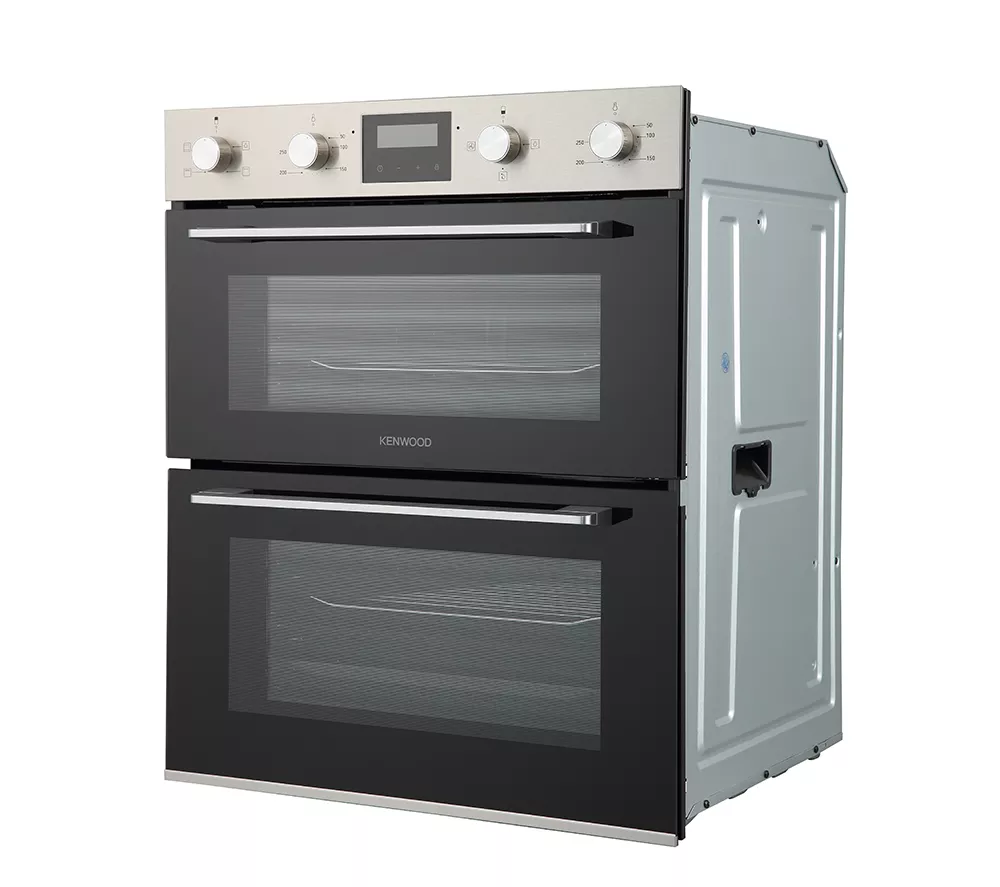

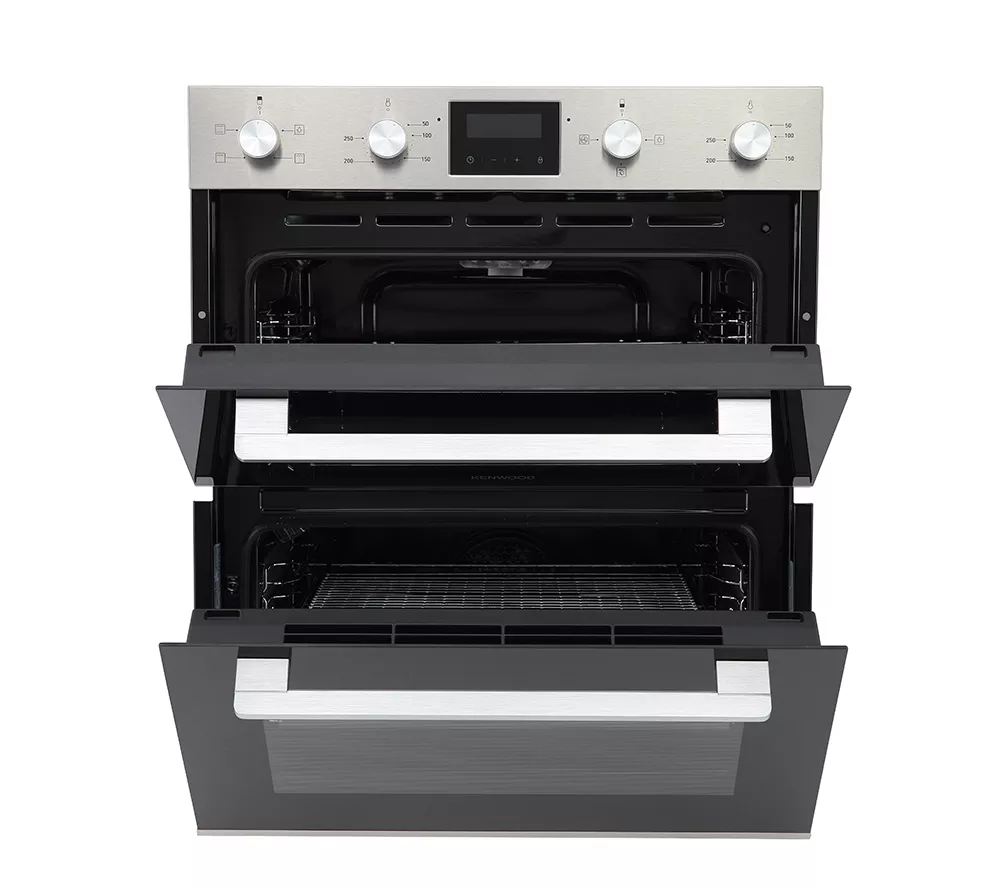

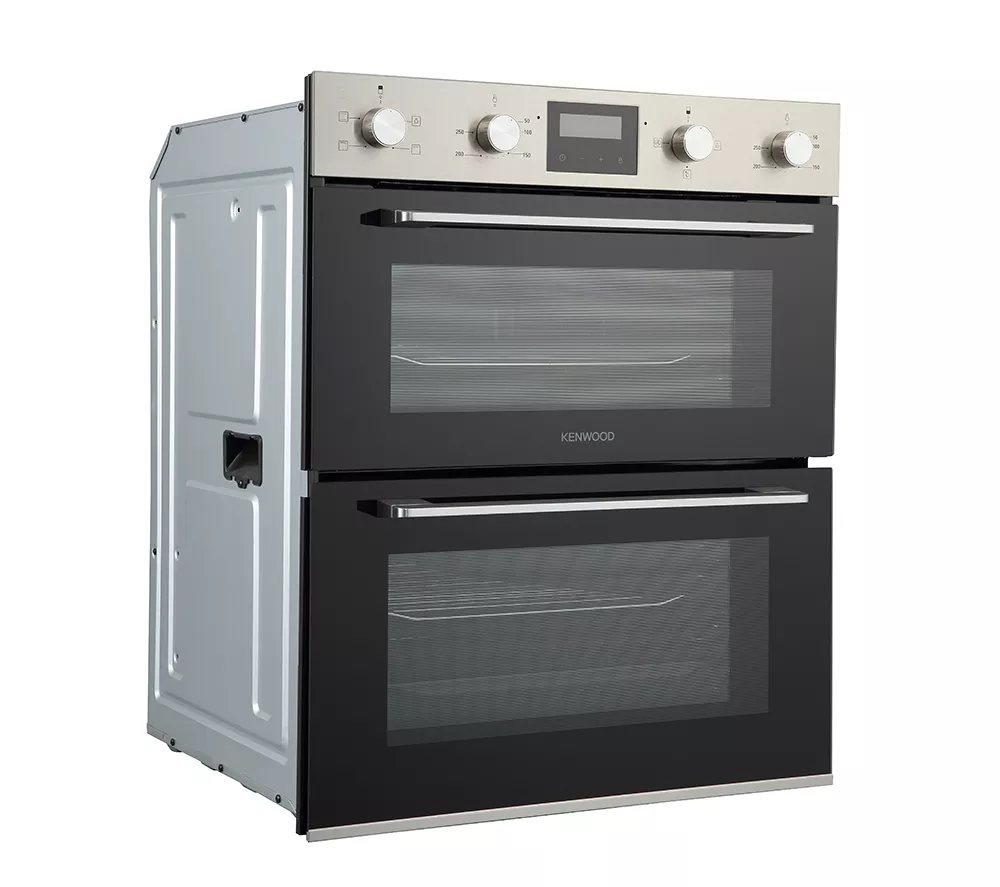

Technical specifications for KENWOOD KBUDOX25 Electric Built-under Double Oven – Black & Stainless Steel
Fuel type
Electric
Type
Built-under double oven
Manufacturer’s guarantee
– 1 year labour
– 2 year parts
– 2 year parts
OVENS
Oven type
– Main: fan
– Second: conventional
– Second: conventional
Number of cavities
2
Viewing window
– Main: double-glazed
– Second: double-glazed
– Second: double-glazed
Energy consumption
– Main: 0.83 kWh
– Second: 0.68 kWh
– Second: 0.68 kWh
Energy rating
– Main: A
– Second: A
– Second: A
Size
– Main: medium
– Second: medium
– Second: medium
Capacity
– Main: 54 litres
– Second: 38 litres
– Second: 38 litres
Type of cleaning
Main: Assisted cleaning / Catalytic liners (Side panels)
Interior light
– Main: yes
– Second: yes
– Second: yes
Safety features
Child lock
Usable volume
– Main: 54 litres
– Second: 38 litres
– Second: 38 litres
Main oven heat-up time
200 degrees in 8 minutes

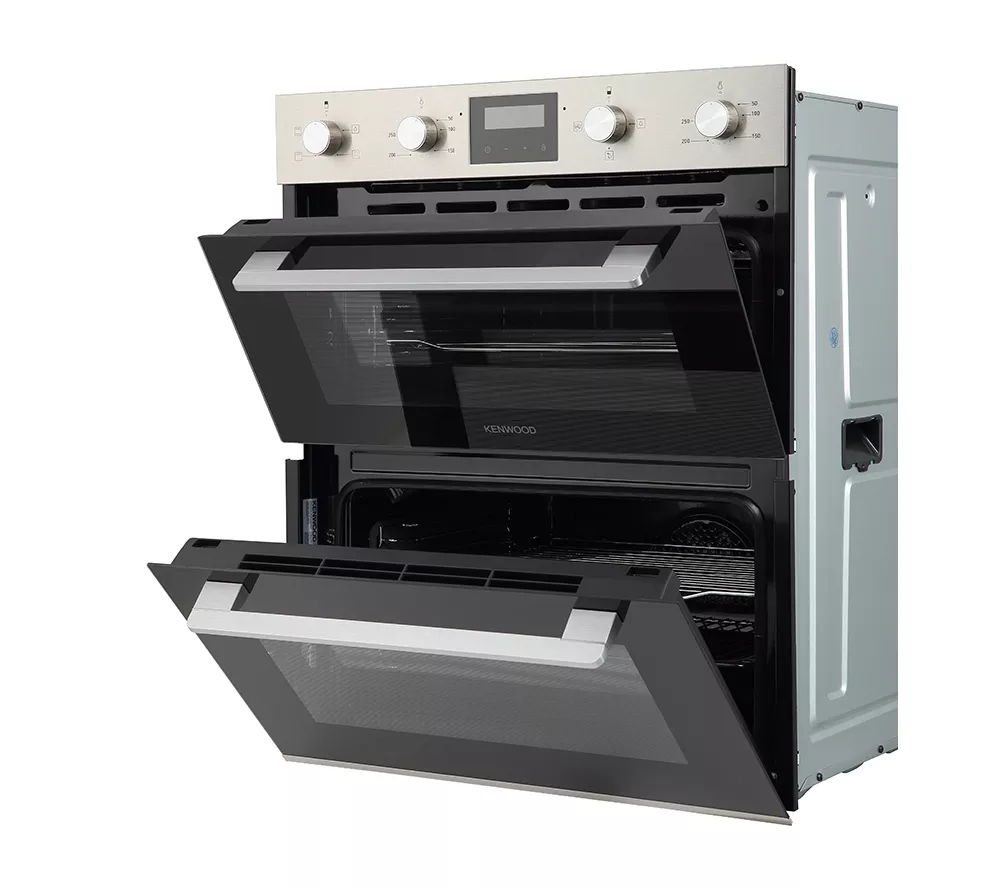

Door opening style
– Main: drop down
– Second: drop down
– Second: drop down

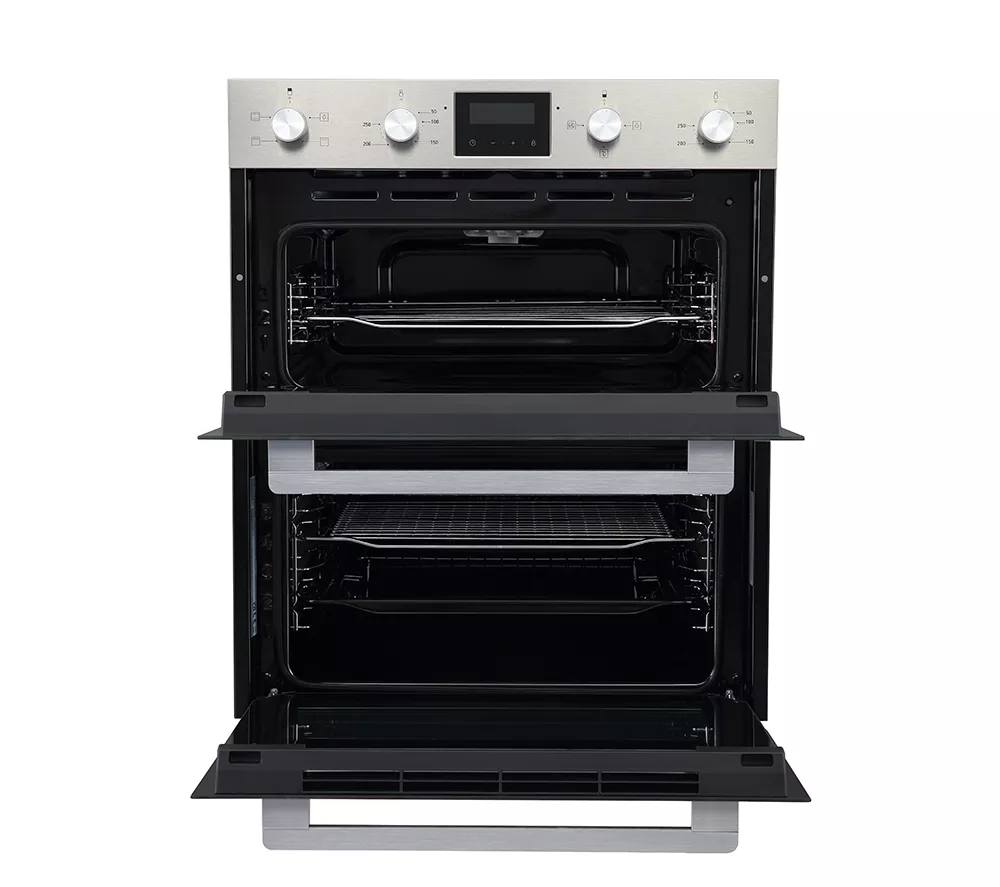

Shelves
Main oven:
– 2 shelves
– 5 shelf positions
Second oven:
– 2 shelves
– 3 shelf positions
– 2 shelves
– 5 shelf positions
Second oven:
– 2 shelves
– 3 shelf positions
Power supply
32 Amp (Requires hardwiring to a dedicated cooker circuit)
Electrical installation
This product requires hardwiring to a 32 Amp fuse and should be installed by a qualified installer, such as one of our Tech Experts.
Electrical power rating
4 kW
GRILL
Grill features
– Full-width
– Fan grilling
– Electric
– Fan grilling
– Electric
Grill type
– Main: Integrated
– Second: Integrated
– Second: Integrated
CONTROLS
Display type
LED display
Timer type
Programmable
Cooking functions
7 cooking functions, including:
– Convection
– Defrost
– Lamp
– Conventional
– Grill
– Double grill
– Lamp
– Convection
– Defrost
– Lamp
– Conventional
– Grill
– Double grill
– Lamp

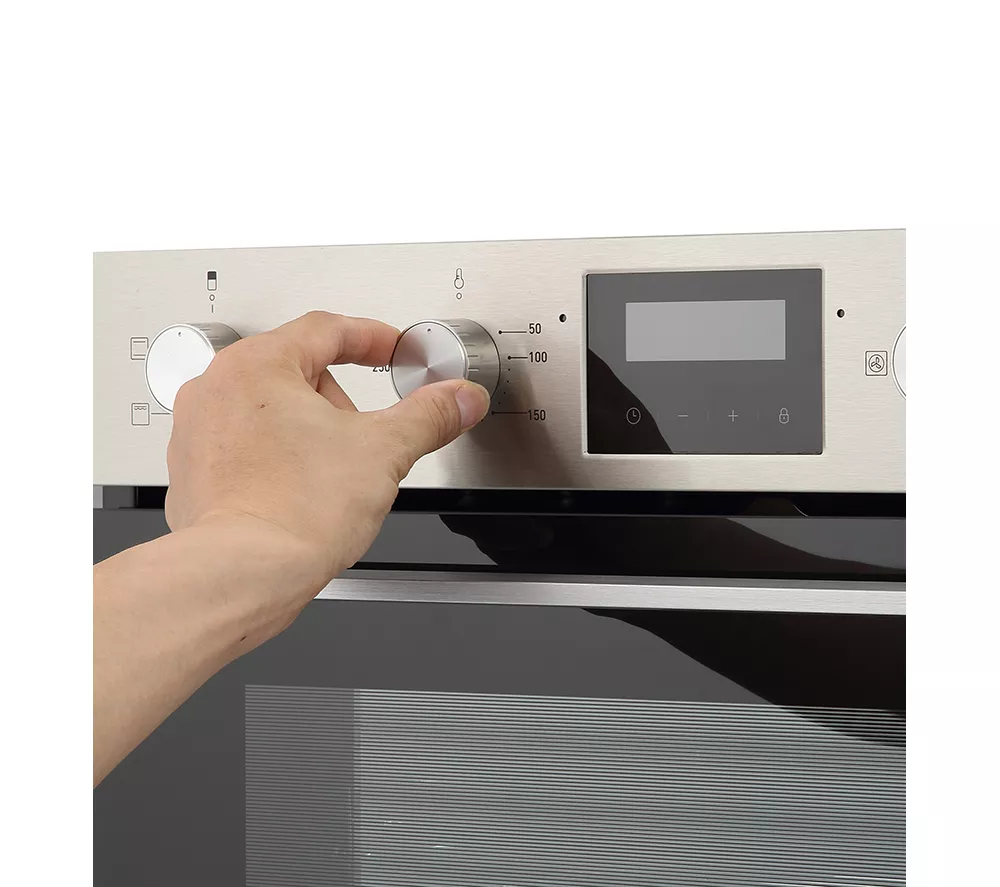

Control type
– Touch control
– Dials
– Dials
GENERAL
Dimensions
720 x 595 x 570 mm (H x W x D)
Weight
43 kg
Boxed weight
51 kg
Colour
Black & stainless steel
Box contents
– Kenwood KBUDOX25 Electric Built-under Double Oven
– Baking tray
– Wire shelf
– Handle
– Grill rack
– Instruction Manual
– Bracket
– Wood stud
– Screw pack
– Baking tray
– Wire shelf
– Handle
– Grill rack
– Instruction Manual
– Bracket
– Wood stud
– Screw pack
Recess dimensions
720 x 563 x 550 mm (H x W x D)
Boxed dimensions
800 x 718 x 693 mm (H x W x D)
