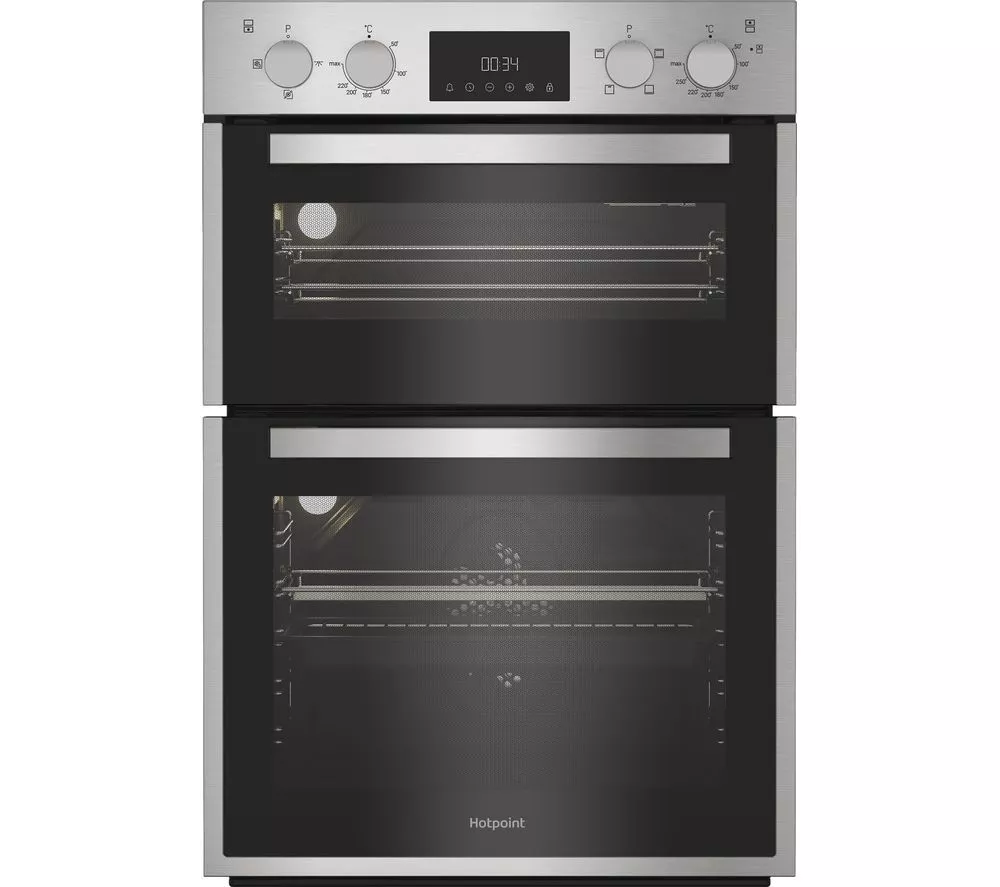

Technical specifications for HOTPOINT DIH 10D IX Electric Built-in Double Oven – Stainless Steel
Fuel type
Electric
Type
Built-in double oven
Manufacturer’s guarantee
– 1 year labour
– 10 years parts
– 10 years parts
OVENS
Oven type
– Main: fan
– Second: fan
– Second: fan
Number of cavities
2
Viewing window
– Main: double-glazed
– Second: double-glazed
– Second: double-glazed
Energy consumption
– Main: 0.82 kWh
– Second: 0.68 kWh
– Second: 0.68 kWh
Energy rating
– Main: A
– Second: A
– Second: A
Size
– Main: extra large
– Second: medium
– Second: medium
Capacity
– Main: 75 litres
– Second: 38 litres
– Second: 38 litres
Type of cleaning
– Main: enamel coating (all sides)
– Second: enamel coating (all sides)
– Second: enamel coating (all sides)
Interior light
– Main: Yes
– Second: Yes
– Second: Yes
Usable volume
– Main: 75 litres
– Second: 38 litres
– Second: 38 litres
Door opening style
– Main: drop down
– Second: drop down
– Second: drop down
Shelves
Main:
– 3 shelves
– 5 shelf positions
– 3 shelves
– 5 shelf positions
Second oven:
– 2 shelves
– 2 shelf positions
Power supply
32 Amp (Requires hardwiring to a dedicated cooker circuit)
Electrical installation
This product requires hardwiring to a 32 Amp fuse and should be installed by a qualified installer, such as one of our Tech Experts.
Electrical power rating
4.3 kW
Flat back design
Yes
GRILL
Grill features
– Full width
– Electric
– Electric
Grill type
– Main: separate
– Second: integrated
– Second: integrated
CONTROLS
Display type
LED display
Timer type
– Main: Programmable
– Second: Programmable
– Second: Programmable
Control type
Dials
GENERAL
Dimensions
890 x 594 x 567 mm (H x W x D)
Weight
45.6 kg
Boxed weight
49 kg
Colour
Stainless steel
Box contents
Hotpoint DIH 10D IX Electric Built-in Double Oven
Recess dimensions
875 x 560 x 550 mm (H x W x D)
Boxed dimensions
950 x 660 x 660 mm (H x W x D)
