Motherboards

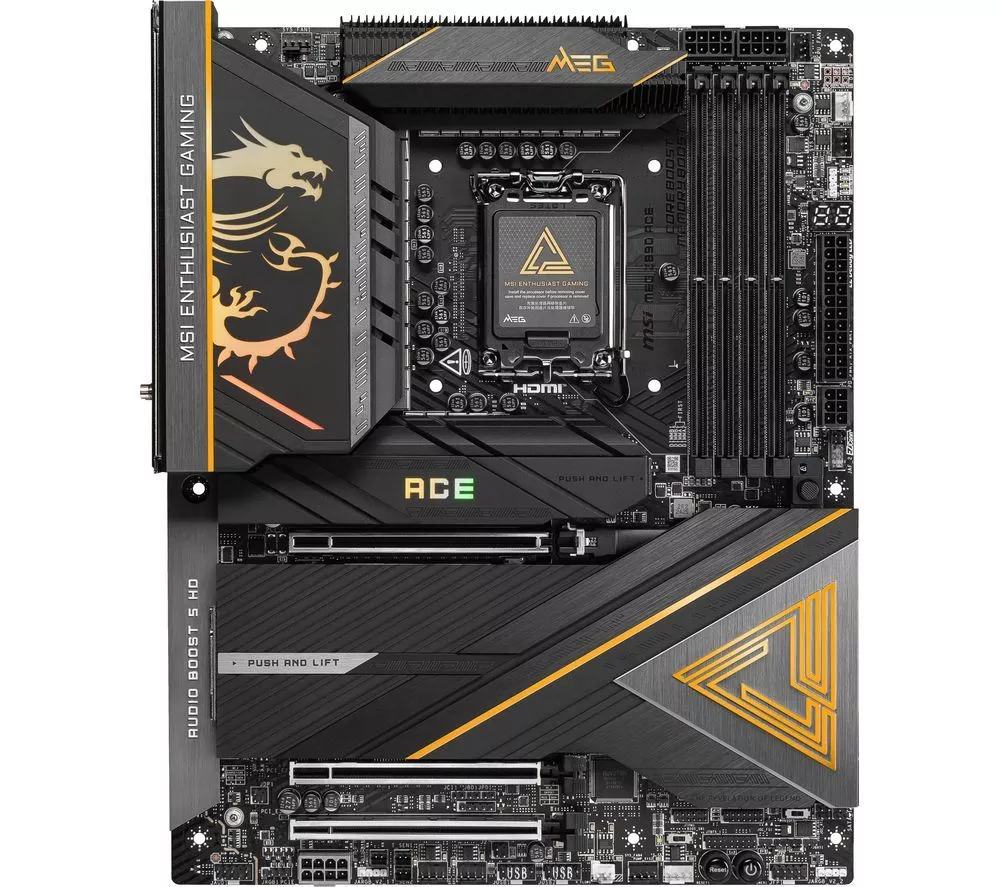

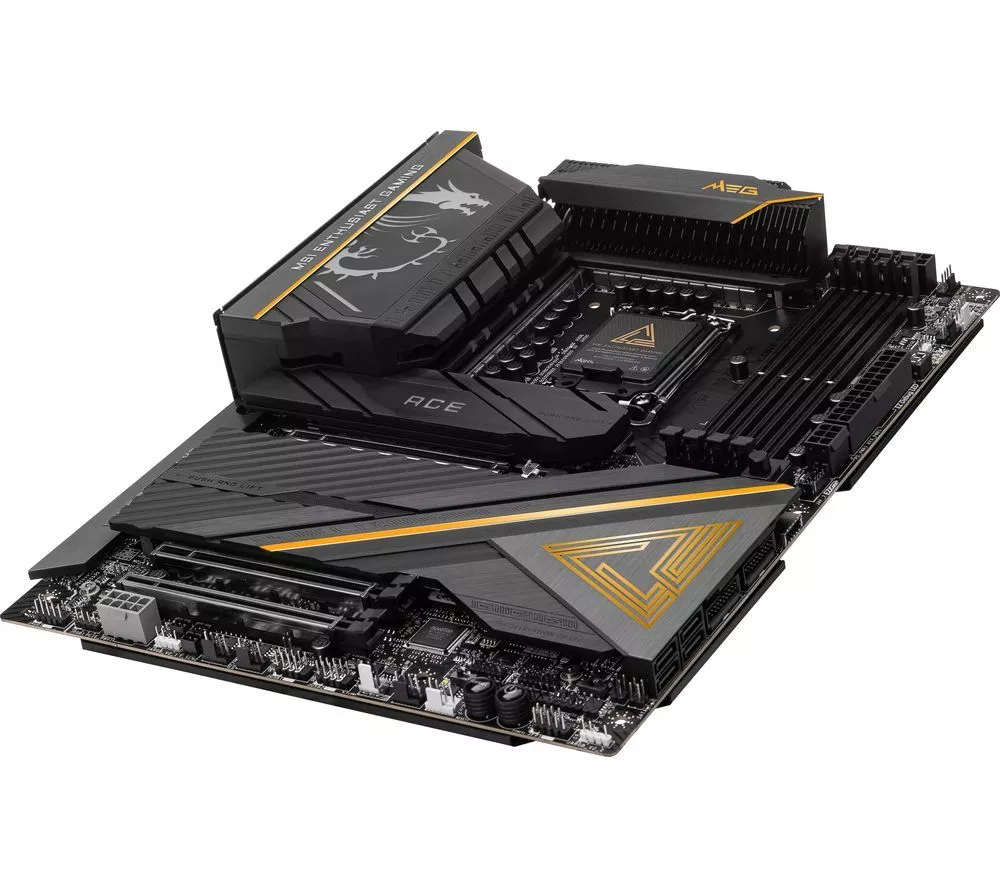

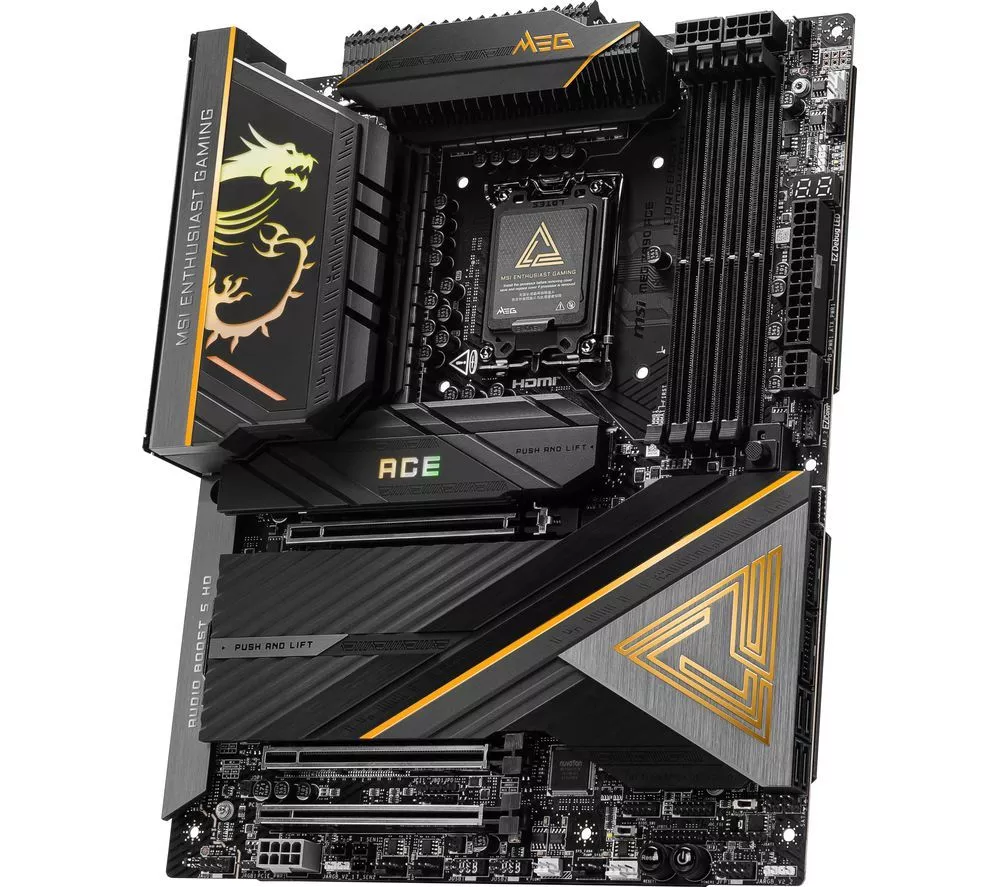

MSI MEG Z890 ACE LGA1851 Motherboard

Name: MSI MEG Z890 ACE LGA1851 Motherboard
Brand: MSI
SKU: LHA-4711377260787
Availability: InStock

Availability:

Hay existencias

✅ Genuine UK Product
📦 Brand New & Factory Sealed
🛡️ Includes Manufacturer's Warranty

Compare

Form factor: ATX
Socket: Intel® 1851
Chipset: Intel® Z890
Memory: DIMM x 4 / Max RAM: 256 GB DDR5
3 year guarantee

£503.99 ~~£599.99~~
El precio actual es: €579.03.El precio original era: €689.32.

Hay existencias

Technical specifications for MSI MEG Z890 ACE LGA1851 Motherboard

OVERVIEW

Form factor

ATX

Chipset

Intel® Z890

Socket

Intel® LGA1851

Processor models supported

Intel® Core™ Ultra Processors (Series 2)

Memory slots

4 x UDIMM (Max RAM: 256 GB)

Memory standard

DDR5

Cooling features

– Frozr AI cooling
– Frozr Sync
– Frozr Guard
– Frozr Control

Operating systems supported

Windows 11 or later

EXTERNAL CONNECTIVITY

Video output

– HDMI 2.1 x 1
– DisplayPort 1.4 x 1

LAN

– Intel® Wi-Fi 7
– Bluetooth 5.4

Audio

– 7.1-Channel USB High-Performance Audio
– Supports S/PDIF output

USB

– USB Type-C x 2
– USB Type-A x 11

INTERNAL CONNECTIVITY

BIOS

Flash BIOS

Expansion slots

– PCIe 5.0 (x16 slot) x 1
– PCIe 5.0 (x8 slot) x 1
– PCIe 4.0 (x4 slot) x 1

Storage slots

– SATA x 4 (6 GB/s)
– M.2 x 5 (64 GB/s)

Cooling

– CPU fan 4-pin x 1
– Combo fan x 2
– System fan 4-pin x 5

Buttons

– Power button
– Flash BIOS Button
– Clear CMOS button
– Smart button

Power

– 24-pin ATX x 1
– 8-pin 12V ATX x 1

Sensors

– Thermal sensor
– Fan speed sensor

Other internal connections

– Thunderbolt5 card connector x 1
– CPU Fan x 1
– Front Panel (JFP) x 2
– Chassis Intrusion (JCI) x 1
– Tuning Controller connector x 1
– Addressable V2 RGB LED connector (JARGB_V2) x 3
– RGB LED connector (JRGB) x 1
– TPM pin header (Support TPM 2.0) x 1

USB

– USB Type-C x 1
– USB 3.2 x 4
– USB 2.0 x 4
